What is 4k Dolby Vision and How It Works and Why You Need It
If you are planning to buy a new 4K TV then you have probably faced a common problem: your new TV does not look as stunning as the demo video you saw in the store. You see a picture but it somehow lacks that real life pop and vibrancy.The truth is, a high resolution 4K display is only half the story. The other, more crucial half is a technology called High Dynamic Range or HDR.
This is where 4K Dolby Vision truly makes a difference. It is not just a fancy term but it is a powerful technology that brings your screen to life with brighter highlights, deeper blacks and a much richer range of colours.
If you are planning an upgrade then let us break it down in a simple way that what Dolby Vision actually is, how it works and why picking a TV with this feature like the new Dyanora Dolby Vision models can be a real step up toward a true home theater experience.
Ever wondered what 4K Dolby Vision really is?

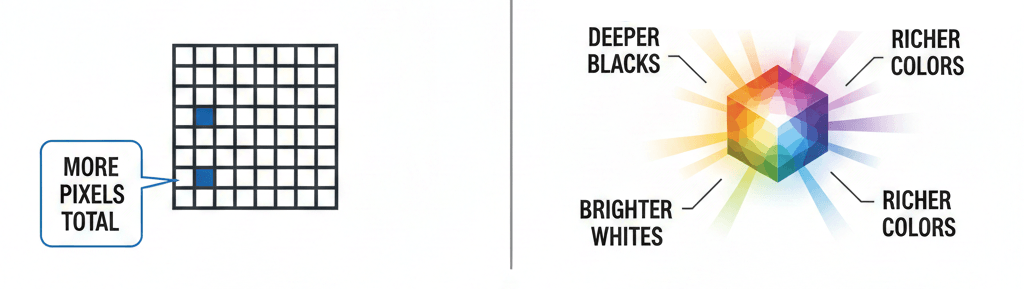

Before diving into 4K Dolby Vision, it is useful to break it into the two things it is built on : 4K and HDR means high dynamic range.
1. 4K: The Resolution Revolution
4K refers to a screen resolution of 3840 × 2160 pixels which is four times the pixel count of a standard Full HD TV 1920 × 1080. With more pixels on the screen, you get sharper images and far more detail.
2. HDR : The Quality of the Pixels
4K increases the number of pixels but HDR improves the quality of each pixel.HDR enhances brightness plus contrast and colours which make the picture look more realistic and closer to what the human eye naturally sees.
Dolby Vision technology is one of the most advanced and powerful forms of HDR.
Why is Dolby Vision Superior? The 5 Key advantage
Dolby Vision improves the standard HDR experience by using dynamic plus advanced technology that makes every scene appear more lifelike and accurate.
- Deeper Contrast Ratio : Dolby Vision takes regular HDR a step further by using smarter, more advanced picture technology to deliver noticeably better visuals.
- Wider Color Gamut : It supports a much wider Color Gamut (Rec. 2020) than standard TV, meaning you see a greater number of vivid and lifelike shades.
- Future Proof Color Depth: It is capable of supporting 12 bit color depth. Even if current consumer displays mostly use 10 bit panels, 12 bit capability ensures your TV can handle the highest quality content for years to come.
- Intense Peak Brightness : The technology is mastered up to a high Peak Brightness level, delivering incredible highlights, like the sun shining on water or a flickering flame.
- Dynamic Metadata : This is the game changer.Unlike other formats, Dolby Vision uses Dynamic Metadata to adjust the image settings for every single scene or even frame by frame which ensures perfect picture quality at all times.
How Dolby Vision Works: The Magic of Dynamic Metadata
This is the most crucial part of the Dolby Vision technology. The concept of Dynamic Metadata is what sets it apart.
Static Metadata vs. Dynamic Metadata
- Static Metadata like in HDR10 : This is a single, fixed set of instructions for the entire movie or show. The TV applies the same brightness and contrast settings to both a dark night scene and a bright sunny scene. This can result in some scenes looking too dark or too washed out.
- Dynamic Metadata in Dolby Vision : The content is encoded with a continuous stream of instructions that tell the TV how to display the image on a scene by scene or frame by frame basis. This information is communicated using a system called Perceptual Quantizer (PQ) which defines how colors and brightness should be displayed.
Crucial : A process called Tone Mapping automatically optimizes the HDR signal to match the specific capabilities of your Dolby Vision display. This means a Dyanora TV with a certain brightness level will get a tailored signal that looks perfect on that exact TV, not just a generic one.
Diagram Title : The Dynamic Metadata Flow
Step 1: The movie or show is mastered using professional tools, where the brightness and color are measured for every scene.
Step 2: This scene specific data means Dynamic Metadata is packaged with the video signal.
Step 3: The TV’s processor like in a Dyanora 4K dolby TV reads the Dynamic Metadata for the current frame.
Step 4: The TV uses tone mapping to automatically fine tune brightness and colors so the picture looks its best on that specific screen.
Result: This ensures you watch every scene the way the filmmaker meant it to look.
Dolby Vision vs HDR10 : The Head to Head Comparison
Choosing between display technologies can be confusing. Here is a simple table to help you compare the two main HDR formats: Dolby Vision vs HDR10.
| Feature | Dolby Vision | HDR10 |
|---|---|---|
| Metadata | Dynamic Metadata (Scene by scene or Frame by frame) | Static Metadata (One setting for the whole content) |
| Color Depth | Supports up to 12 bit color | Capped at 10 bit color |
| Peak Brightness | Mastered up to 10,000 nits (Future ready) | Capped at 4,000 nits (Typically 1,000 nits) |
| Licensing | Requires a Licensing fee | Open standard, royalty free |
The Bottom Line: Dolby Vision offers a more technically advanced, precise and future proof image because of its ability to use Dynamic Metadata and support 12 bit color.
5 Essential Things to Consider Before Buying a Dolby Vision TV : A Dyanora Recommendation
Now that the key display features are clear, here is a simple guide to help pick the Best Dolby Vision TV that can genuinely elevate your viewing experience.
1. Look for Certified 4K and Dolby Vision Support
Make sure the TV explicitly lists 4K resolution and Dolby Vision technology. Many Dyanora models like the Omega series include both confirming their ability to deliver the highest quality content.
2. Check the Peak Brightness Specification
While Dolby Vision handles the picture, the TV’s hardware needs enough Peak Brightness to show those brilliant highlights. The higher the Nits which is a measure of brightness the better the HDR effect will be.
3. Ensure HDMI 2.1 Ports : Especially for Gaming
If you are into gaming for example Xbox Series X, PS5 or want the best picture quality for high frame rate content then make sure HDR TV has HDMI 2.1 ports. HDMI 2.1 is essential for delivering the full bandwidth of 4K at higher refresh rates.
4. Verify Streaming Service Support
Check if your favorite Streaming service support like Netflix, Disney+, Apple TV is available and supports Dolby Vision on the TV’s platform. Dyanora Smart TVs often use Android or WebOS, which provide easy access to these platforms.
5. Do not Forget the Sound
A great picture deserves great sound. Look for a TV with integrated powerful audio and often Dolby Vision is paired with Dolby Audio or Dolby Surround Sound for a complete cinematic experience.
Our Recommendation: Dyanora provides a great blend of performance and value, incorporating powerful features like Dolby Vision and high watt speakers in their 4K Ultra HD models. See the clarity of Dyanora’s Dolby Vision for yourself. Call us for a Free Demo/Consultation.
Common Mistakes to Avoid for the Best 4K Dolby Experience
To ensure you are getting the full benefit of your new TV then avoid these common setup errors:
- Using Old and Cheap HDMI Cables: An old HDMI cable cannot handle the large amount of data required for 4K HDR. You need a certified HDMI 2.1 or at least a High Speed cable.
- Not Enabling the Correct Picture Mode : Some TVs need turning on Enhanced HDMI or Deep Color mode in the settings for that HDMI port to properly receive the full Dolby Vision signal.
- Ignoring Firmware Updates: Always make sure the TV has the latest Firmware update. Software updates frequently improve compatibility and picture processing for formats like Dolby Vision.
- Not Using Dolby Vision Supported Devices : The source device also needs to support the format whether it is a streaming service, a UHD Blu-ray player or a gaming console.
FAQs : Everything The One Need to Know About 4K Dolby Vision
Let’s go through the most frequently asked questions about getting a new TV:
Q1. Can older TV models run Dolby Vision?
No older TVs usually can not support Dolby Vision. It needs special hardware and a stronger processor which can not be added through a normal software update.
Q2. Is Dolby Vision available across all major streaming apps?
No. Major platforms like Netflix, Disney+ and Apple TV do support Dolby Vision but not every app offers it. It is always best to check the content details within the streaming app.
Q3. Is a specific UHD Blu ray player required for Dolby Vision?
Yes. A UHD Blu ray disc with Dolby Vision requires a UHD Blu ray player that officially supports Dolby Vision along with a compatible HDMI connection to pass the full signal to the TV.
Q4. How does Dolby Vision differ from HDR10?
The key difference is the metadata.Dolby Vision uses Dynamic Metadata to optimize the picture scene by scene while HDR10 uses Static Metadata which is one setting for the whole film.
Q5. What is HDR10+ and how does it compare?
HDR10+ is the direct competitor to Dolby Vision. It is an open standard that also uses Dynamic Metadata. However, Dolby Vision is more widely supported by premium TV makers and major Hollywood studios.
Q6. How does 4K Dolby Vision compare to standard 4K HDR?
Yes in most cases.Because of its use of Dynamic Metadata and potential for 12 bit color, 4K Dolby Vision delivers a more accurate, vibrant and impactful picture than standard 4K HDR which is usually HDR10.
Q7. Is an AV receiver required to use Dolby Vision?
An AV receiver is only needed when external speakers are part of the setup and the 4K Dolby Vision signal must pass through it before reaching the TV. It is important that the receiver supports Dolby Vision and includes the proper HDMI ports for smooth playback.
Q8. What does 12 bit color mean to me?
12 bit color refers to the number of possible colors the format can represent. The number is massive which is over 68 billion colors and helps in eliminating banding where colors transition abruptly and makes gradients in shadows and highlights incredibly smooth.
Q9. What are LSI Keywords like Rec. 2020?
LSI Keywords stand for Latent Semantic Indexing are terms like Rec. 2020. Rec. 2020 is a large container for colors or Color Gamut that Dolby Vision and other high end HDR formats use to display a much wider range of colors than older TV standards.
Q10. Is Dolby Vision supported on popular gaming consoles?
Newer consoles such as the Xbox Series X already support Dolby Vision for gaming.But However the feature is still rolling out across the industry.So it is a good idea to check the console settings and the game specifications to confirm compatibility.
Conclusion
Standard 4K is good but 4K Dolby Vision brings a different level of clarity and realism. Why? Because Dolby Vision’s Dynamic Metadata adjusts the picture scene by scene to show details regular 4K simply can not. With richer colours plus deeper contrast and smarter picture control, the 4K Dolby Vision lets you enjoy content exactly as the filmmaker imagined.
